Internal Policy Chatbot

Build an HR or IT policy chatbot that stays on-topic, answers grounded in your actual documents, and refuses to make things up — no custom chunking pipeline required.

What You're Building

A web chatbot deployed on Azure App Service with Entra ID authentication. The backend is a FastAPI app that calls a Foundry model through the Responses API with the file_search tool, grounded in your policy documents (Foundry IQ or a vector store). You upload policy PDFs once; the model retrieves relevant chunks automatically and cites them. A minimal HTML/JS frontend handles the chat UI.

Prerequisites

• A Microsoft Foundry / Azure AI Services resource with a gpt-4.1-mini deployment: bash az cognitiveservices account deployment create --name <res> --resource-group <rg> \ --deployment-name gpt-4.1-mini --model-name gpt-4.1-mini --model-version 2025-04-14 \ --model-format OpenAI --sku-name GlobalStandard --sku-capacity 10
• Foundry IQ (managed knowledge) or a vector store to ground answers — Step 1 creates one and gives you a vector store ID (vs-…).
• Azure App Service (B1 or higher, Python 3.11 runtime) for hosting the chat UI.
• Azure CLI logged in with Cognitive Services OpenAI User (or Contributor) on the resource. This demo uses Entra ID auth, not API keys.
• AZURE_OPENAI_ENDPOINT (the https://<resource>.cognitiveservices.azure.com/ host) and POLICY_VECTOR_STORE_ID set in .env.
• Python 3.11+
• 1–5 policy documents (PDF, .txt, or .md) to test with

pip install "openai>=1.30.0" azure-identity fastapi uvicorn python-dotenv

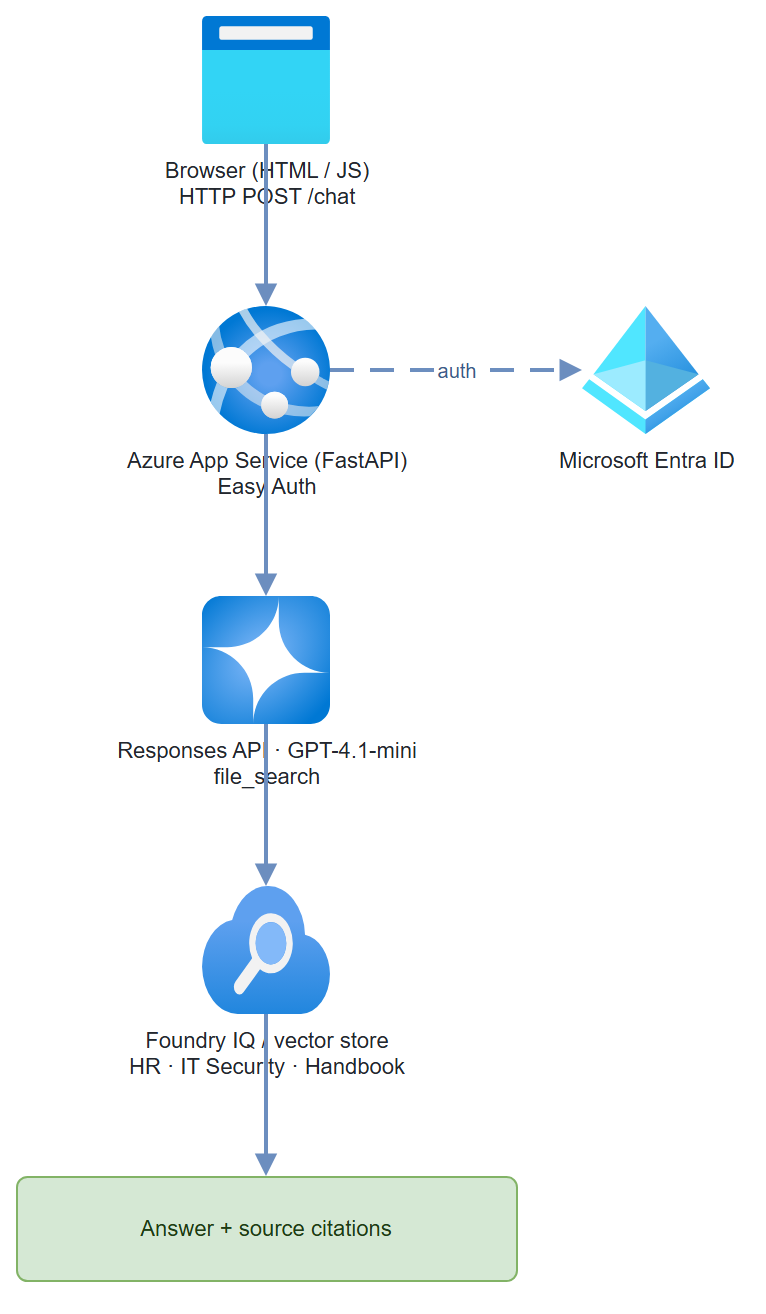

Architecture

Step-by-Step Build

Step 1 — Upload documents and create the knowledge index

Option A — Foundry portal (Foundry IQ):

1. Open https://ai.azure.com → your project
2. Navigate to Knowledge → Foundry IQ
3. Click Add data source → Upload files
4. Upload your PDFs (HR policy, IT security policy, employee handbook, etc.)
5. Wait for indexing to complete (status turns green)
6. Copy the vector store ID (vs-…) it exposes — that's what the file_search tool needs

Option B — code (no portal): upload files and create a vector store directly, exactly as in Project 01:

from azure.identity import DefaultAzureCredential, get_bearer_token_provider
from openai import AzureOpenAI

client = AzureOpenAI(
    azure_endpoint=os.environ["AZURE_OPENAI_ENDPOINT"],
    azure_ad_token_provider=get_bearer_token_provider(
        DefaultAzureCredential(), "https://cognitiveservices.azure.com/.default"),
    api_version="2025-04-01-preview",
)
file_ids = []
for path in ["HR-Policy.pdf", "IT-Security-Policy.pdf"]:
    with open(path, "rb") as f:
        file_ids.append(client.files.create(file=f, purpose="assistants").id)
vs = client.vector_stores.create(name="policy-chatbot-store", file_ids=file_ids)
print("POLICY_VECTOR_STORE_ID:", vs.id)   # vs-…

Gotcha: Foundry IQ processes PDFs natively, but for PDFs with complex tables or multi-column layouts, accuracy degrades. Use Azure AI Document Intelligence preprocessing for those.

Step 2 — Create the FastAPI backend

# app.py
import os
from fastapi import FastAPI, HTTPException
from fastapi.staticfiles import StaticFiles
from fastapi.middleware.cors import CORSMiddleware
from pydantic import BaseModel
from dotenv import load_dotenv
from azure.identity import DefaultAzureCredential, get_bearer_token_provider
from openai import AzureOpenAI

load_dotenv()

app = FastAPI()
app.add_middleware(
    CORSMiddleware,
    allow_origins=["*"],
    allow_methods=["POST"],
    allow_headers=["*"]
)

ENDPOINT = os.environ["AZURE_OPENAI_ENDPOINT"]          # https://<resource>.cognitiveservices.azure.com/
VECTOR_STORE_ID = os.environ["POLICY_VECTOR_STORE_ID"]  # vs-… from Step 1
MODEL = os.environ.get("CHAT_MODEL", "gpt-4.1-mini")

# Entra ID auth (managed identity in App Service, az login locally) — no API keys
token_provider = get_bearer_token_provider(
    DefaultAzureCredential(), "https://cognitiveservices.azure.com/.default"
)
client = AzureOpenAI(
    azure_endpoint=ENDPOINT,
    azure_ad_token_provider=token_provider,
    api_version="2025-04-01-preview",
)

INSTRUCTIONS = (
    "You are an HR/IT policy assistant for our company. "
    "Answer questions using only the policy documents returned by file search. "
    "Always cite the specific policy document. "
    "If the answer isn't in the documents, say exactly: "
    "\"I don't have that information in our current policies - please contact HR directly.\" "
    "Never guess at policy details. Never provide legal advice."
)


class ChatRequest(BaseModel):
    message: str
    previous_response_id: str | None = None   # None = new conversation


class ChatResponse(BaseModel):
    reply: str
    response_id: str
    citations: list[dict]


def _extract(response):
    """Pull answer text and file_search citations out of a Responses API result."""
    answer, citations, seen = "", [], set()
    for item in response.output:
        if getattr(item, "type", None) == "message":
            for block in item.content:
                if getattr(block, "type", None) == "output_text":
                    answer += block.text
                    # Responses API file_search annotations are flat
                    # AnnotationFileCitation objects (type/file_id/filename) —
                    # not the older Assistants-style nested `ann.file_citation`.
                    for ann in getattr(block, "annotations", None) or []:
                        if getattr(ann, "type", None) == "file_citation":
                            name = getattr(ann, "filename", None) or getattr(ann, "file_id", "")
                            if name and name not in seen:
                                seen.add(name)
                                citations.append(
                                    {"filename": name, "file_id": getattr(ann, "file_id", "")}
                                )
    return answer, citations


@app.post("/chat", response_model=ChatResponse)
async def chat(req: ChatRequest):
    try:
        # The Responses API keeps conversation state server-side via
        # previous_response_id — no threads/runs bookkeeping needed.
        response = client.responses.create(
            model=MODEL,
            input=req.message,
            previous_response_id=req.previous_response_id,
            instructions=INSTRUCTIONS,
            tools=[{"type": "file_search", "vector_store_ids": [VECTOR_STORE_ID]}],
            include=["file_search_call.results"],
        )
    except Exception as e:
        raise HTTPException(status_code=500, detail=str(e))

    reply, citations = _extract(response)
    return ChatResponse(reply=reply, response_id=response.id, citations=citations)


@app.get("/health")
def health():
    return {"status": "ok"}


# Serve the static chat UI
app.mount("/", StaticFiles(directory="static", html=True), name="static")

Step 3 — Build the chat UI

<!-- static/index.html -->
<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Policy Assistant</title>
  <style>
    * { box-sizing: border-box; margin: 0; padding: 0; }
    body { font-family: "Segoe UI", sans-serif; background: #f5f5f5; }
    #app { max-width: 800px; margin: 40px auto; background: white;
           border-radius: 8px; box-shadow: 0 2px 8px rgba(0,0,0,0.1);
           display: flex; flex-direction: column; height: 80vh; }
    header { background: #0078d4; color: white; padding: 16px 20px;
             border-radius: 8px 8px 0 0; }
    header h1 { font-size: 1.2rem; }
    header p { font-size: 0.85rem; opacity: 0.8; margin-top: 4px; }
    #messages { flex: 1; overflow-y: auto; padding: 20px; display: flex;
                flex-direction: column; gap: 12px; }
    .msg { max-width: 75%; padding: 10px 14px; border-radius: 8px;
           line-height: 1.5; font-size: 0.9rem; }
    .msg.user { background: #0078d4; color: white; align-self: flex-end;
                border-bottom-right-radius: 2px; }
    .msg.bot { background: #f0f0f0; color: #333; align-self: flex-start;
               border-bottom-left-radius: 2px; }
    .citation { font-size: 0.75rem; color: #666; margin-top: 6px;
                font-style: italic; }
    #input-row { display: flex; padding: 16px; border-top: 1px solid #e0e0e0; gap: 8px; }
    #user-input { flex: 1; padding: 10px 14px; border: 1px solid #ccc;
                  border-radius: 6px; font-size: 0.9rem; outline: none; }
    #user-input:focus { border-color: #0078d4; }
    #send-btn { background: #0078d4; color: white; border: none;
                padding: 10px 20px; border-radius: 6px; cursor: pointer;
                font-size: 0.9rem; }
    #send-btn:disabled { opacity: 0.5; cursor: not-allowed; }
  </style>
</head>
<body>
<div id="app">
  <header>
    <h1>Policy Assistant</h1>
    <p>Ask questions about HR and IT policies</p>
  </header>
  <div id="messages">
    <div class="msg bot">
      Hello! I can answer questions about our HR and IT policies.
      What would you like to know?
    </div>
  </div>
  <div id="input-row">
    <input id="user-input" type="text" placeholder="Ask a policy question..."
           autocomplete="off" />
    <button id="send-btn">Send</button>
  </div>
</div>

<script>
  let previousResponseId = localStorage.getItem('policyResponseId');

  async function sendMessage() {
    const input = document.getElementById('user-input');
    const btn = document.getElementById('send-btn');
    const text = input.value.trim();
    if (!text) return;

    appendMessage(text, 'user');
    input.value = '';
    btn.disabled = true;

    try {
      const res = await fetch('/chat', {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({ message: text, previous_response_id: previousResponseId })
      });
      const data = await res.json();
      previousResponseId = data.response_id;
      localStorage.setItem('policyResponseId', previousResponseId);

      const msgDiv = appendMessage(data.reply, 'bot');
      if (data.citations && data.citations.length > 0) {
        const citeDiv = document.createElement('div');
        citeDiv.className = 'citation';
        citeDiv.textContent = `Sources: ${data.citations.length} policy document(s)`;
        msgDiv.appendChild(citeDiv);
      }
    } catch (err) {
      appendMessage('Sorry, something went wrong. Please try again.', 'bot');
    } finally {
      btn.disabled = false;
      input.focus();
    }
  }

  function appendMessage(text, role) {
    const div = document.createElement('div');
    div.className = `msg ${role}`;
    div.textContent = text;
    const messages = document.getElementById('messages');
    messages.appendChild(div);
    messages.scrollTop = messages.scrollHeight;
    return div;
  }

  document.getElementById('send-btn').addEventListener('click', sendMessage);
  document.getElementById('user-input').addEventListener('keydown', e => {
    if (e.key === 'Enter') sendMessage();
  });
</script>
</body>
</html>

Step 4 — Deploy to Azure App Service

# Create App Service plan and web app
az appservice plan create \
  --name policy-chatbot-plan \
  --resource-group $RG \
  --sku B1 \
  --is-linux

az webapp create \
  --name policy-chatbot-app \
  --resource-group $RG \
  --plan policy-chatbot-plan \
  --runtime "PYTHON:3.11"

# Configure environment variables
az webapp config appsettings set \
  --name policy-chatbot-app \
  --resource-group $RG \
  --settings \
    AZURE_OPENAI_ENDPOINT="https://<resource>.cognitiveservices.azure.com/" \
    POLICY_VECTOR_STORE_ID="<vs-id-from-step-1>" \
    SCM_DO_BUILD_DURING_DEPLOYMENT=true

# Enable managed identity so the app can authenticate to Foundry
az webapp identity assign \
  --name policy-chatbot-app \
  --resource-group $RG

# Grant the managed identity data-plane access to the Foundry / AI Services resource
# (use the principal ID from the output above)
az role assignment create \
  --assignee <principal-id> \
  --role "Cognitive Services OpenAI User" \
  --scope $(az cognitiveservices account show --name <res> --resource-group $RG --query id -o tsv)

Step 5 — Enable Entra ID auth (Easy Auth)

az webapp auth microsoft update \
  --name policy-chatbot-app \
  --resource-group $RG \
  --client-id <entra-app-client-id> \
  --client-secret <entra-app-client-secret> \
  --tenant-id <tenant-id> \
  --issuer https://login.microsoftonline.com/<tenant-id>/v2.0

az webapp auth update \
  --name policy-chatbot-app \
  --resource-group $RG \
  --enabled true \
  --action RedirectToLoginPage

Now only users in your tenant can access the chatbot.

Test It

# Run locally first
uvicorn app:app --reload --port 8000

Test queries: - "How many vacation days do I get in my first year?" - "What is our password rotation policy?" - "Can I expense a home office monitor?"

Watch for: - Answers grounded in documents (check citations in the response) - Refusals when the question is outside policy scope - No hallucinated policy details

Common Mistakes

• Reaching for the old Assistants agents API. azure-ai-projects 2.x removed the threads/runs Assistants surface — AIProjectClient has no .agents, and MessageRole/PromptAgentDefinition/FileSearchTool aren't importable. Use the AzureOpenAI Responses API with the file_search tool, as shown above.
• Response ID not persisted across browser sessions. Store the response_id in localStorage (the UI above does) or a server-side session. Without it, every page refresh starts a new conversation.
• Passing the wrong knowledge identifier. The file_search tool wants a vector store ID (vs-…), not a file ID (assistant-…) or a portal display name. Step 1 prints the value you need.

Extend It

1. Scope by department: Create separate agents per department (HR, IT, Finance) each with their own Foundry IQ knowledge source. Route requests based on the authenticated user's group from Entra ID claims.
2. Audit logging: Log every question + answer pair to Azure Cosmos DB with the user's UPN (from the Easy Auth headers). Build a Power BI report on top for compliance review.
3. Feedback buttons: Add thumbs up/down to each bot message. Store feedback in Cosmos DB and review low-rated answers weekly to improve the document corpus.

Resources

• Foundry IQ (knowledge grounding)
• Azure App Service Python deployment
• App Service Easy Auth (Entra ID)
• Managed identity for App Service
